How to calibrate a self – operated control valve?

by edward•

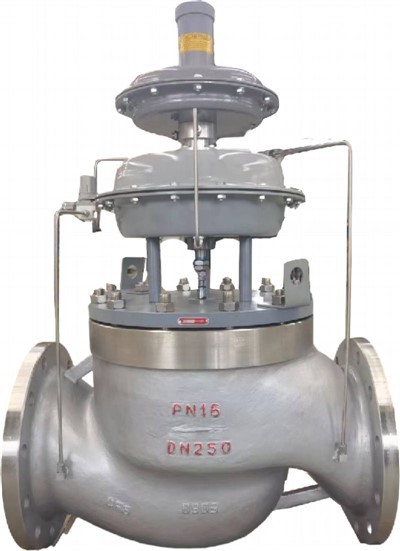

Calibrating a self – operated control valve is a crucial process that ensures the valve functions accurately and efficiently. As a supplier of self – operated control valves, I understand the significance of proper calibration in maintaining optimal performance and meeting the specific requirements of various industrial applications. In this blog, I will share some in – depth insights on how to calibrate a self – operated control valve. Self-operated Control Valve

Understanding Self – Operated Control Valves

Before delving into the calibration process, it’s essential to have a clear understanding of what self – operated control valves are. These valves are designed to regulate fluid flow, pressure, or temperature without the need for an external power source. They operate based on the principles of fluid mechanics and pressure differentials. For example, a pressure – regulating self – operated control valve will adjust the valve opening to maintain a constant downstream pressure, regardless of changes in upstream pressure or flow rate.

Preparation for Calibration

  1. Gather Necessary Tools
    • You will need a pressure gauge to measure the inlet and outlet pressures accurately. A reliable pressure gauge with appropriate range and accuracy is essential. For instance, if you are dealing with a valve in a high – pressure system, you need a gauge that can handle the high – pressure values.
    • A flow meter is also required to measure the flow rate. Depending on the type of fluid and the application, different types of flow meters such as electromagnetic, ultrasonic, or turbine flow meters can be used.
    • A set of wrenches and screwdrivers is necessary for adjusting the valve components. Make sure the tools are of the correct size and type to avoid damaging the valve.
  2. Review Valve Specifications
    • Refer to the valve’s technical documentation provided by the manufacturer. This documentation contains important information such as the valve’s rated pressure, flow capacity, and recommended calibration procedures. Understanding these specifications is crucial as it helps you set the correct parameters during calibration.
  3. Isolate the Valve
    • Before starting the calibration process, it is important to isolate the valve from the system. This can be done by closing the upstream and downstream isolation valves. This ensures the safety of the calibration process and prevents any unexpected fluid flow during adjustment.

Calibration Steps

Step 1: Initial Inspection

  1. Visual Inspection
    • Examine the valve for any signs of damage, such as cracks, leaks, or corrosion. Check the valve body, bonnet, and connections. If any damage is found, it should be repaired or replaced before proceeding with calibration.
  2. Check the Actuator
    • If the self – operated control valve has an actuator, inspect it for proper operation. Ensure that the actuator is free from any mechanical obstructions and that the diaphragm or piston (depending on the actuator type) is in good condition.

Step 2: Set the Initial Pressure or Flow

  1. For Pressure – Regulating Valves
    • Adjust the set point of the pressure – regulating valve. This is usually done by turning an adjustment screw or knob on the valve. Start by setting the set point to a value slightly lower than the desired downstream pressure.
    • Open the upstream isolation valve slowly and allow the fluid to flow through the valve. Monitor the downstream pressure using the pressure gauge.
  2. For Flow – Regulating Valves
    • Set the initial flow rate. This can be done by adjusting the valve opening manually. Use the flow meter to measure the flow rate and make small adjustments to the valve opening until the desired flow rate is achieved.

Step 3: Fine – Tuning

  1. Pressure – Regulating Valves
    • Once the initial pressure is set, make small adjustments to the set point. Observe the downstream pressure and how it responds to the adjustments. If the pressure is too high, decrease the set point; if it is too low, increase the set point.
    • Continuously monitor the pressure for a period of time to ensure that the valve is maintaining a stable downstream pressure. Make additional fine – tuning adjustments as necessary.
  2. Flow – Regulating Valves
    • Similarly, for flow – regulating valves, make small adjustments to the valve opening to fine – tune the flow rate. Check the flow meter readings and make sure the flow rate remains consistent over time.

Step 4: Testing and Verification

  1. Pressure Testing
    • Conduct a pressure test to verify the accuracy of the calibration. Increase the upstream pressure slightly and observe how the valve responds. The downstream pressure should remain within the desired range. If there are significant deviations, further calibration adjustments may be required.
  2. Flow Testing
    • For flow – regulating valves, test the valve under different flow conditions. Vary the flow rate and check if the valve can maintain the set flow rate accurately. This helps to ensure that the valve will perform well in real – world operating conditions.

Troubleshooting during Calibration

  1. Inconsistent Pressure or Flow
    • If the pressure or flow is inconsistent, check for possible blockages in the valve or the piping system. A blockage can cause irregularities in the fluid flow and affect the valve’s performance.
    • Also, check the integrity of the valve components. A worn – out diaphragm or a faulty spring can lead to inconsistent operation.
  2. Excessive Leakage
    • If there is excessive leakage from the valve, inspect the valve seat and seals. A damaged seat or seal can cause fluid to leak, reducing the valve’s efficiency. Replace the damaged components if necessary.

Importance of Regular Calibration

Regular calibration of self – operated control valves is essential for several reasons. Firstly, it ensures the accuracy of the valve’s operation. Over time, the valve components may wear out, and the calibration may drift. Regular calibration helps to maintain the desired pressure or flow rate, which is crucial for the proper functioning of the industrial process.

Secondly, it improves the safety of the system. A poorly calibrated valve can lead to over – pressure or under – pressure situations, which can pose risks to the equipment and personnel. By calibrating the valve regularly, these risks can be minimized.

Finally, regular calibration can extend the lifespan of the valve. Properly calibrated valves experience less wear and tear, reducing the need for frequent replacements.

Conclusion

Self-operated Control Valve Calibrating a self – operated control valve is a complex but necessary process. By following the steps outlined above, you can ensure that your self – operated control valve functions accurately and efficiently. As a supplier of self – operated control valves, we are committed to providing high – quality valves and offering support in the calibration process. If you are in need of self – operated control valves or require assistance with calibration, we encourage you to contact us for further discussion and procurement. Our team of experts is ready to help you find the best solutions for your specific needs.

References

  • "Control Valve Handbook", Emerson Process Management
  • "Valve Selection and Sizing", Fisher Controls International
